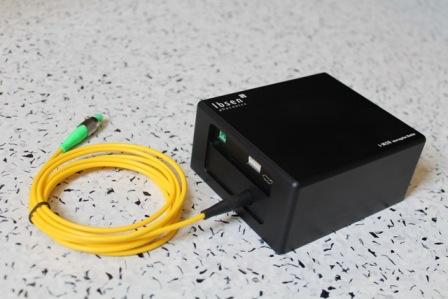

I-MON 256 USB / 512 USB
咨询热线：010-88866512 浏览： 4272
产品摘要详细参数产品图片
The I-MON 256/512 USB interrogation monitors offer real-time spectrum monitoring of FBG sensors. The USB series is based on the I-MON 256/512 OEM series. Adding our new USB interface makes it possible to acquire spectra with up to 6 kHz, while maintaining sub-picometer wavelength fit resolution.
Data acquisition software provides easy setup with a laptop, and the I–MON can act as a stand-alone monitor in combination with a customer-selected light source.
Applications
Stand-alone Interrogation Monitor and/or OEM Interrogation Monitor Modules:
- Temperature measurements
- Pressure monitoring
- Strain measurements
- Vibration analysis
Specifications
|
Parameter
|
Unit
|
I-MON 256 USB
|
I-MON 512 USB
|
| Maximum number of FBG sensors |
|
> 37 |
> 70 |
| Minimum FBG spacing |
pm |
1200 |
1000 / 1200 |
| Wavelength range |
nm |
1525 – 1570 |
1275-1345/1510-1595 |
| Wavelength fit resolution (*) |
pm |
< 0.5 |
< 0.5 |
| Repeatability (over any pol. state) |
pm |
3 (5 max) |
3 (5 max) |
| Wavelength accuracy |
pm |
5 (typ) |
5 (typ) |
| Wavelength drift (*) |
pm / deg C |
1 (3 max) |
1 (3 max) |
| Dynamic range |
dB |
30 |
30 |
| Input optical power range |
dBm |
-80 to -20 |
-80 to -20 |
| Measurement frequency |
Hz |
6000 |
3000 |
| Interface |
|
USB 2.0 |
USB 2.0 |
| Current consumption (**) |
mA |
250 |
250 |
| Size (LxWxD) |
mm |
110x94x49 |
110x94x49 |
| Operating temperature |
deg C |
0 to 50 |
0 to 50 |
| Storage temperature |
deg C |
-20 to 70 |
-20 to 70 |
(*) Note that by applying temperature control or temperature correction the wavelength accuracy over the entire wavelength range can be improved.
(**) USB bus power
